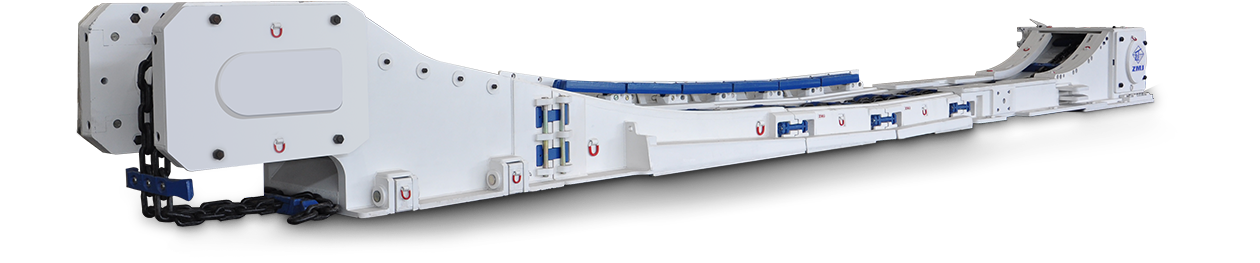

High-strength composite C-slot scraper conveyor

ADVANTAGE

The scraper conveyor was identified as the first set of major technical equipment in Henan Province in 2018. The middle trough is manufactured with advanced national technology, and its service life is more than 2 times longer than that of traditional casting and welding equipment. Through optimized design, the problem of easy wear such as the middle plate in the middle groove and the shovel plate is solved. The double-layer middle plate structure is adopted to ensure the consistent strength of the tank body and improve the reliability of the equipment. The cable trough is arranged in multiple channels to isolate cables, water pipes, hydraulic pipelines, etc., which is easy to maintain; at the same time, the double corrugated board cable trough structure is adopted to ensure rigidity.

APPLICATION

Longwall coal mining face in medium and thick coal seams.

TECHNICAL PARAMETERS

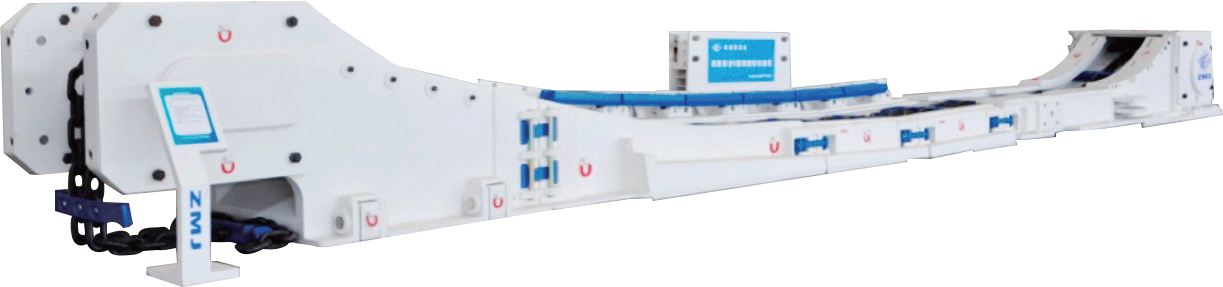

DEVICE MODEL：SGZ1000/1050
VOLUME：2500t/h
LENGTH：200m
SPECIFICATION：Φ42x146 FLAT CHAIN
MIDDLE SLOT：1500x1000x320(mm)
THICKNESS(MIDDLE PLATE)：（25+30）mm
THICKNESS(BOTTOM PLATE)：30mm

Main technical parameters of commonly used models
MODEL	CAPACITY(t/h)	LENGTH(m)	SPEED(m/s)	CHAIN(mm)	MIDDLE SLOT(mm)	MIDDLE THICKNESS(mm)	BOTTOM THICKNESS(mm)
SGZ 800(830)/ 2 (315～525)	1200~1500	160～300	1.1~1.3	Φ34×126	1750(1500)×800(770)×300	25/20	30(25)
SGZ 900/ 2（400～700） 3（400～525）	1500~1800	180～300	1.2~1.3	Φ34×126 Φ38×137	1750(1500)×900×320	30/20	30
SGZ 1000/ 2（525～1000） 3（700～1000）	2000~3000	200～400	1.3~1.6	Φ38×137 Φ42×146 Φ48×152	1750(1500)×1000×320(340)	30/25	30
SGZ 1200/ 2（700～1200） 3（700～1000）	3000~3600	200～400	1.3~1.6	Φ48×152 Φ52/125×170C	1750(2050)×1200×340(400)	40/30	40

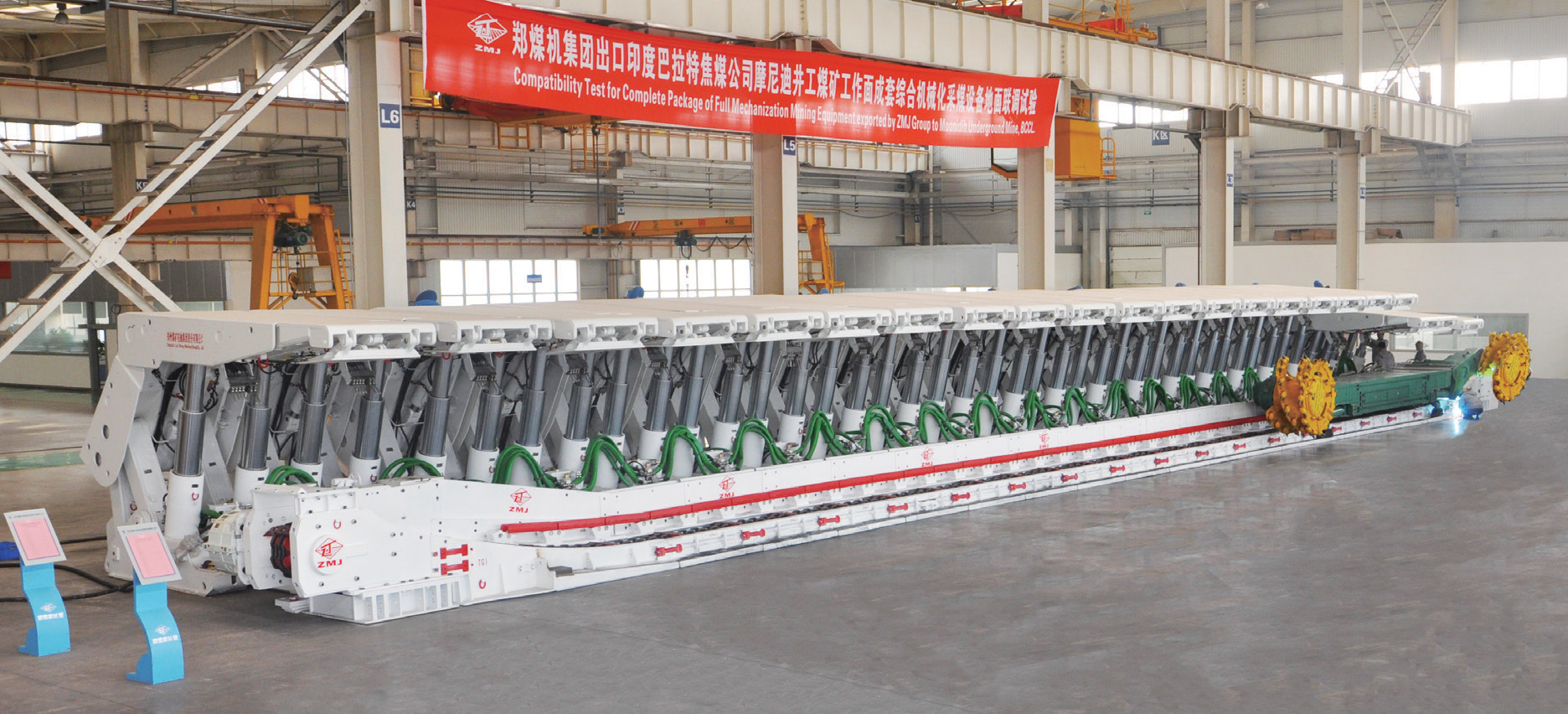

Thin coal seam scraper conveyor

This series of products are specially developed for the requirements of the scraper conveying equipment for the working face of thin coal seams. They have the advantages of low height of the chute, high strength of the chute body, high safety factor, large coal passing space, adaptability to different roadways, and convenient cutting of triangular coal. Applied to working face of 0.9~1.3m thin coal seam.

Main technical parameters of commonly used models
MODEL	CAPACITY(t/h)	LENGTH(m)	SPEED(m/s)	CHAIN(mm)	MIDDLE SLOT(mm)	MIDDLE THICKNESS(mm)	BOTTOM THICKNESS(mm)
SGZ 630/ 2（110～160）	250~350	160～250	0.9~1.1	Φ26×92	1500×588×215	25	16
SGZ 730/ 2（160～250）	400~550	160～260	1.0~1.2	Φ26×92 Φ30×108	1500×688×230（215）	30（25）	20（16）
SGZ 764/ 2(200~315)	600~700	180～280	1.0~1.2	Φ30×108	1500×722×230(215)	30	20
SGZ 800/ 2（315~700） 3（400~525）	800~1200	160～350	1.1~1.3	Φ34×126 Φ38×137	1500(1750)×800×(260~302)	40	30(25)

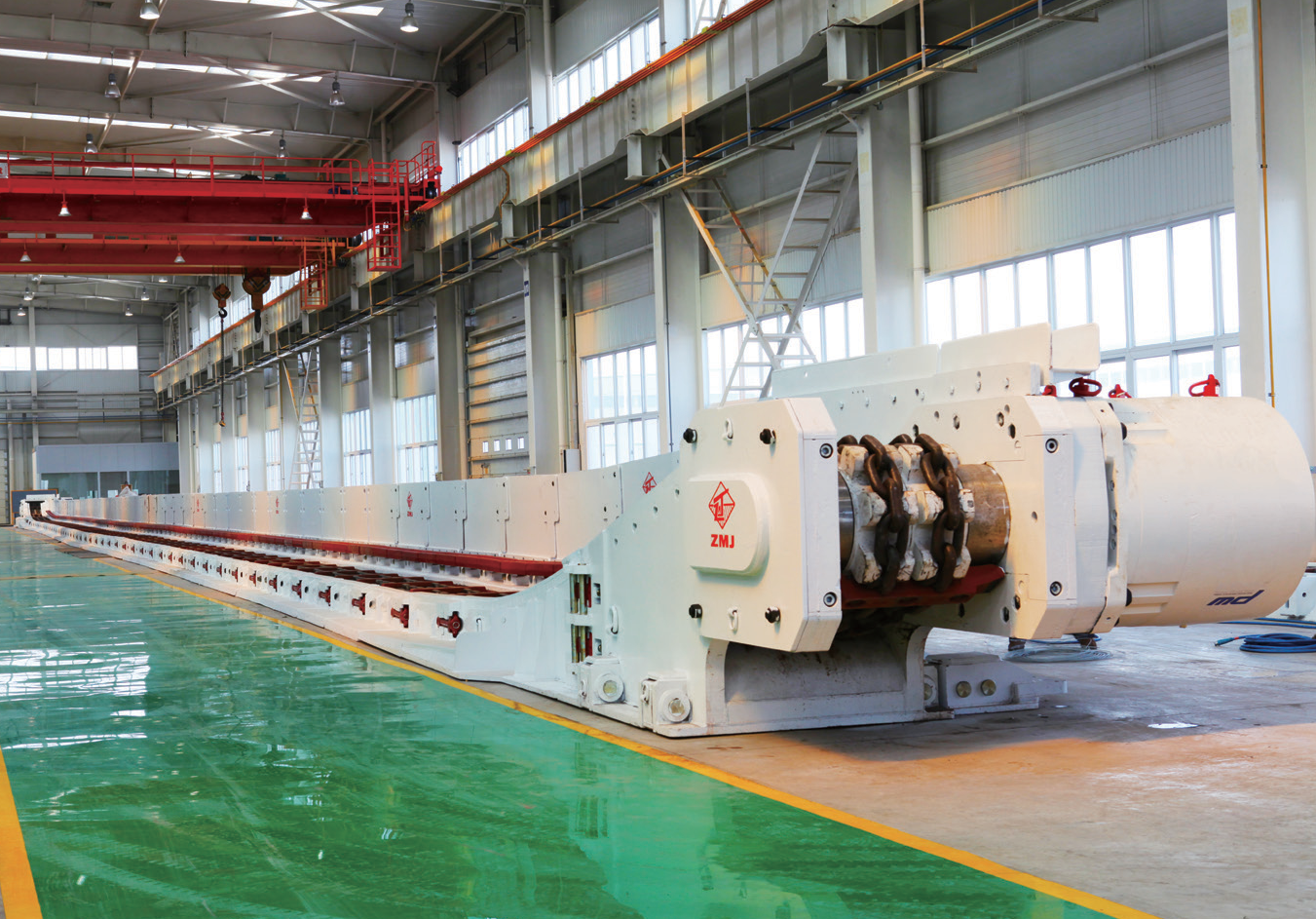

Cast welded scraper conveyor

The middle trough of this series of products is welded by the casting trough upper and the middle and bottom plates. It covers a full range of scraper conveyors with a trough width ranging from 630 to 1250mm. It can adapt to general medium and extra-thick coal seams, and is matched with a supporting transfer machine along the trough. , Crusher, transfer machine self-moving and The belt conveyor self-moving tail, etc., can meet the requirements of the coal mining face with an annual output of 500,000 to 10 million tons.

Main technical parameters of commonly used models
MODEL	CAPACITY(t/h)	LENGTH(m)	SPEED(m/s)	CHAIN(mm)
SGZ 1250/2（855～1200）、 3×（700～1200）	3600～4000	200～400	1.3~1.8	Φ48×152 Φ52/125×170C
SGZ 1200/2（700～1200）、 3（700～1000）	3000～3600	200～400	1.3~1.6	Φ42×146 Φ48×152 Φ52/125×170C
SGZ 1000/2（525～1000）、 3（700～1000）	2000～3000	200～400	1.3~1.6	Φ38×137 Φ42×146 Φ48×152
SGZ 900/2（400～700）、 3（400～525）	1500～1800	180～300	1.2~1.3	Φ34×126 Φ38×137
SGZ 800/2（315～525）	1200～1500	160～300	1.1~1.3	Φ34×126
SGZ 830/2（315～400）	1000～1200	150～250	1.1~1.3	Φ34×126
SGZ 764/2（200～315）	800～900	150～280	1.0~1.2	Φ26×92 Φ30×108
SGZ 730/2（160～250）	600～700	150～200	1.0~1.2	Φ26×92 Φ30×108
SGZ 630/2（110～160）	400～500	150～200	0.9~1.1	Φ26×92
